Rabbit — Jul 02 Task

• Carried over from: jul-01-rabbit-design.md — completed tasks omitted.
• Status: task / design (for review) · IA: ../features/README.md

0. Summary

The lead item is new: make the PBS consumer track (C2 searcher + C4 observer) work in the cloud deployment, not just locally. The rest are the still-open items carried over from Jul-01: the JayVerse Gravia dashboard MVP, auth / LLM gating, the Market page, KB-over-MCP/RAG in AI Chat, an AP2 Stripe example, and the ERC-7702 / 7715 demo.

Done on Jul-01 (omitted here): New First (PBS C2/C4 shipped), New Third (ETC → JayVerse), New Fourth (EN/KO toggle + full i18n), §1 Portfolio/Market split, §4 Knowledge. See jul-01-rabbit-design.md for those.

1. ⭐ NEW — PBS consumer track in the cloud

🔲 TODO

Goal: the PBS consumer track built Jul-01 currently runs locally off .env.local. Make it work on the deployed cloud app (Cloud Run per the roadmap) — safely, since C2 signs real transactions.

Current state

• C4 observer (/api/relay, app/xyz/RelayDashboard.tsx) — pure public Data-API polling, no secrets → already cloud-safe. Only needs a deploy + egress check.
• C2 searcher (/api/bundle, /api/bundle/status, lib/flashbots.ts) — needs the signing key server-side (SEPOLIA_RPC/ADMIN_KEY, optional MAINNET_RPC/MAINNET_ADMIN_KEY), Node runtime, login-gated. Multi-builder submit (Flashbots · beaverbuild · Titan · rsync).

Design / work

1. Secrets injection. Put the RPC + key env into GCP Secret Manager and mount as Cloud Run env — never baked into the image. Follow the Docker policy: multi-stage build + .dockerignore so .env* never enters the build context.
2. Access tightening. /api/bundle* currently allows any ALLOWED_EMAILS user. Because it spends real funds with a server key, gate to jay-only in cloud (session.user.email === linked0@gmail.com, matching the §2 "jay → env secret" pattern) → non-jay gets 403.
3. Mainnet safety in cloud. Real-funds risk on a reachable URL. Default disable mainnet in cloud unless an explicit ENABLE_MAINNET_BUNDLE=1 flag is set (Sepolia stays on). Optionally add a value cap (reject value above a small threshold) + basic rate-limit on the endpoint.
4. Runtime + egress. Keep /api/bundle* on the Node.js runtime (ethers needs it — already runtime = "nodejs", not edge). Confirm Cloud Run egress reaches the relays/builders + RPC hosts.
5. Mode awareness. In appMode() === "cloud", C2 must not assume any localhost (it doesn't — uses env RPC + public relays). Just verify.
6. Verify: deploy → open cloud /xyz → C4 loads for anyone → log in as jay → C2 Sepolia submit works with Secret-Manager-injected keys → inclusion tracker shows ✅.

Open questions

• Cloud host = Cloud Run (roadmap S6) — confirm.
• Allow mainnet bundles from the cloud app at all, or Sepolia-only there for safety?
• Add a per-submit value cap / rate-limit on the cloud endpoint?

Recommend: Sepolia enabled in cloud; mainnet off by default, behind ENABLE_MAINNET_BUNDLE

• jay-only + a small value cap. Secrets via Secret Manager.

2. JayVerse — Gravia live-trading dashboard (MVP)

🔲 TODO — (carried from Jul-01 "New Second"; the /jayverse route is currently a stub.)

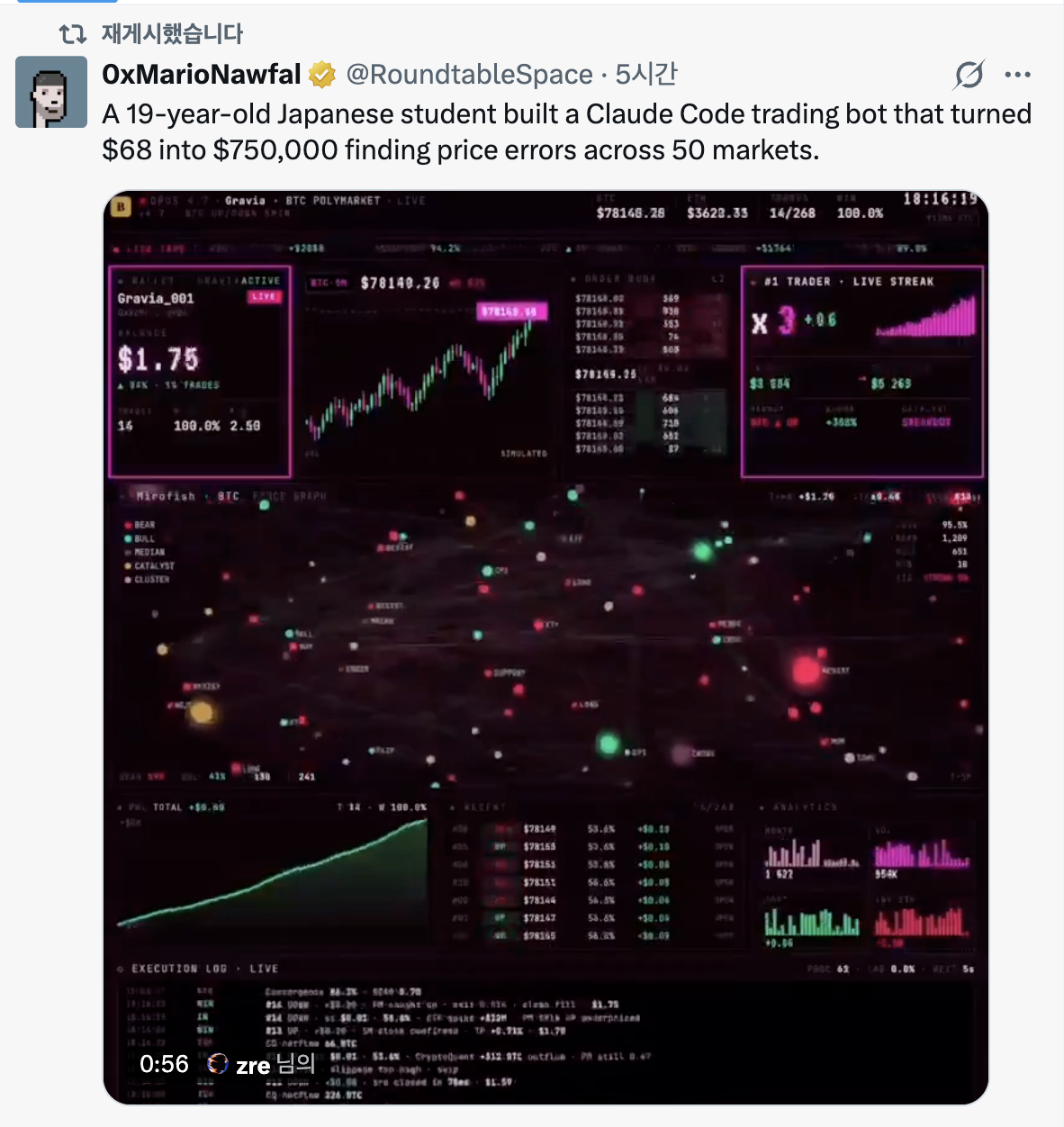

Reference (aesthetic to reproduce):

What: a visually striking, SIMULATED / DEMO live-trading dashboard (Gravia aesthetic) at /jayverse — dark cyberpunk terminal, everything animating off one mock feed. Full design + panel list + tech in ../features/jayverse.md and Jul-01 New Second.

• MVP: all panels, 100% mock animated feed, one route, no auth/persistence. Charts via lightweight-charts; force-graph via react-force-graph-2d/d3-force; a single useGravia() hook.
• v2 (optional): wire the real Hyperliquid book + Flashbots relay auction panel.
• Open: MVP fully mock vs wire Hyperliquid day one; is the force-graph centerpiece a must-have for MVP (most work) or defer to v2?

3. Auth + LLM gating

🔲 TODO

• Login-only category: Portfolio — menu item hidden until login (authOnly in Nav.tsx) and access-gated in middleware.ts. (AI Chat: menu visible, access-gated.)
• AI Chat access model: user picks a Proprietary LLM + supplies own API key; Local LLM only in local mode (Ollama at localhost), shown but disabled in cloud; jay uses the server-stored key (no paste).
• Design: lib/ai.ts key/source resolver — jay → env secret · other → own key, persisted & **encrypted at rest** · Local → local mode only. Gate stored-key path on jay's email; detect mode via appMode() (lib/mode.ts).
• Decided (jay): persist users' keys, encrypted at rest; provider = OpenAI now (Anthropic later).

4. Market page — Hyperliquid orderbook + indices

🔲 TODO

• /market shows indices (reuse /summary IndexCards: BTC · ETH · S&P 500 · KOSPI) + a live Hyperliquid L2 orderbook (reuse app/api/perp/indices, else add app/api/orderbook proxying Hyperliquid's public info endpoint).
• Decided (jay): REST poll first, WebSocket next; default market BTC perp.

5. AI Chat — KB via MCP + RAG

🔲 TODO

• Goal: chat queries the Knowledge KB via RAG, exposed through an MCP tool (KB search/retrieval).
• Design: index Knowledge (know.html + md) → embeddings → vector store; expose retrieval as this project's MCP server (fallback: RAG in /api/chat). Flow: question → top-k chunks → prompt → answer with citations.
• Open: embedding model (local nomic-embed vs OpenAI), vector store, MCP-tool vs in-route RAG.

6. AP2 — Stripe settlement example (educational)

🔲 TODO

• Goal: an educational fiat settlement via Stripe (counterpart to on-chain x402; see ../features/ap2-test.md).
• Design: mock "agent buys data, settles via Stripe" — price → Checkout/PaymentIntent → success releases data. Test-mode keys only.
• Open: Checkout vs PaymentIntent; how prominently to contrast with x402.

7. ERC-7702 / 7715 demo (educational)

🔲 TODO — (was "ETC" in Jul-01 §7; ETC is now JayVerse. Decide its home: under JayVerse, under XYZ, or its own slot.)

• Standards: EIP-7702 (EOA runs smart-account code) + ERC-7715 (wallet_grantPermissions = scoped session key) / ERC-7710 (delegation).
• Design: connect wallet → grant a session key (e.g. "spend ≤ X testnet USDC to Y, valid 1h") → show the session key doing that bounded action without re-signing. Testnet Sepolia.
• Decided (jay): stack = MetaMask Delegation Toolkit on Sepolia. Scope = short explainer + 1 demo tx.

8. Cross-cutting — IA update

🔲 TODO (partly done Jul-01: Nav split/reorder, JayVerse rename applied)

• Finish the Target IA table in ../features/README.md: reflect Market split + new order (already applied), and any new routes: /market content, ERC-7702 demo subpage, AP2 Stripe under /ap2.

9. Decisions & remaining open questions

Resolved (jay):

• AI Chat keys: persist per user, encrypted at rest; provider = OpenAI now.
• Market: REST poll first, WebSocket next; default BTC perp.
• MCP exposes KB retrieval.
• ERC demo standards = 7702 + 7715/7710; MetaMask Delegation Toolkit on Sepolia.

Still open:

• Cloud PBS: allow mainnet from cloud or Sepolia-only? value cap / rate-limit?
• ERC-7702 demo home: JayVerse vs XYZ vs own slot.
• JayVerse MVP: fully mock vs wire Hyperliquid; force-graph in MVP or v2?
• KB: embedding model + vector store; MCP-tool vs in-route RAG.
• AP2: Stripe Checkout vs PaymentIntent.

10. Suggested sequence

1. PBS consumer track → cloud (§1) — Secret Manager + jay-only gate + Sepolia-first; the code exists.
2. JayVerse Gravia dashboard MVP (§2) — high "wow", zero backend.
3. Market page content (§4) — indices then orderbook.
4. AI Chat gating (§3) → KB RAG + MCP (§5).
5. AP2 Stripe (§6); ERC-7702/7715 demo (§7); finish IA (§8).
